TERRA SWM

3-13 kW6-17 kW

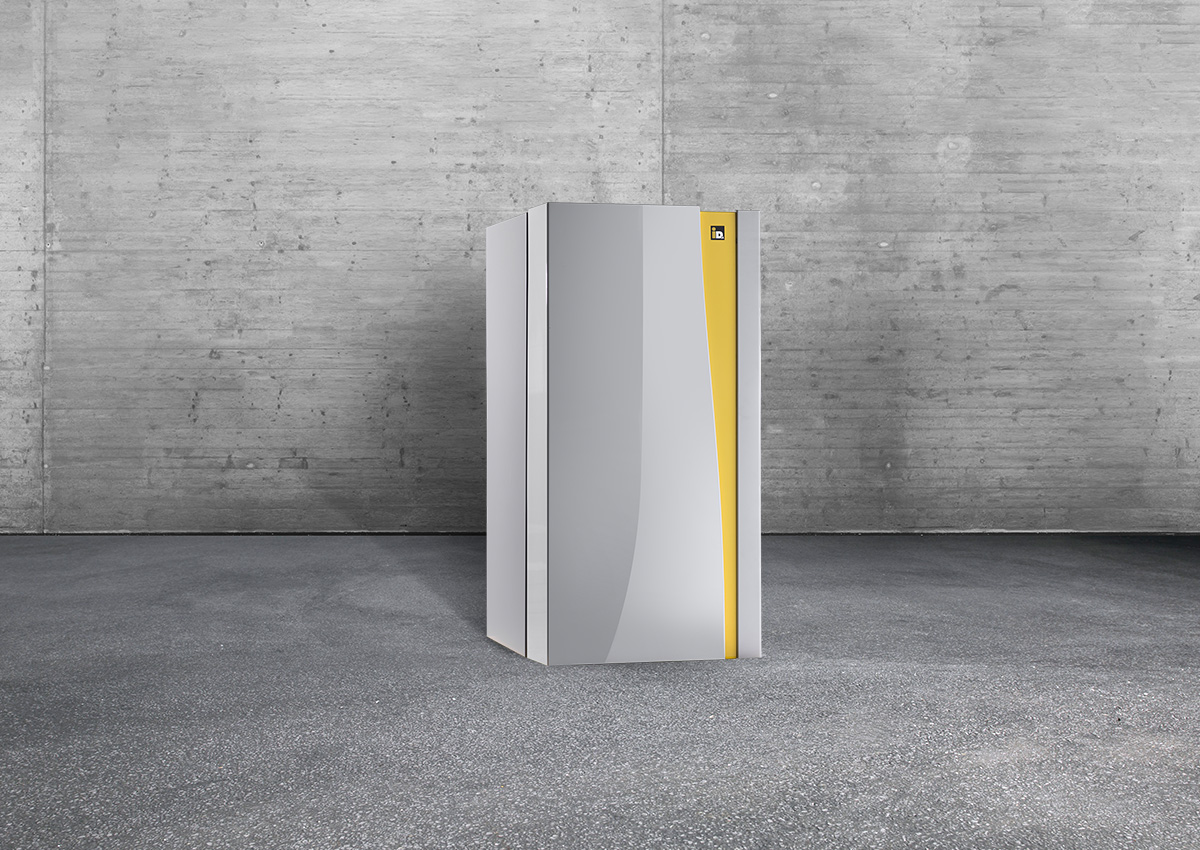

The iDM TERRA SWM 3-13 is a modulating geothermal heat pump that enables efficient output adjustment. It effortlessly provides heating, cooling and domestic hot water in single-family homes. The heat output adapts flexibly to currentheat requirements thanks to infinitely variable modulation in the range of 3-13 kW. Both geothermal and hydrothermal heat sources can be used.

  • Modulating – adapts to the heating demand of the building
  • High SCOP 35 °C: 5.51 (TERRA SWM 3-13) for low energy consumption

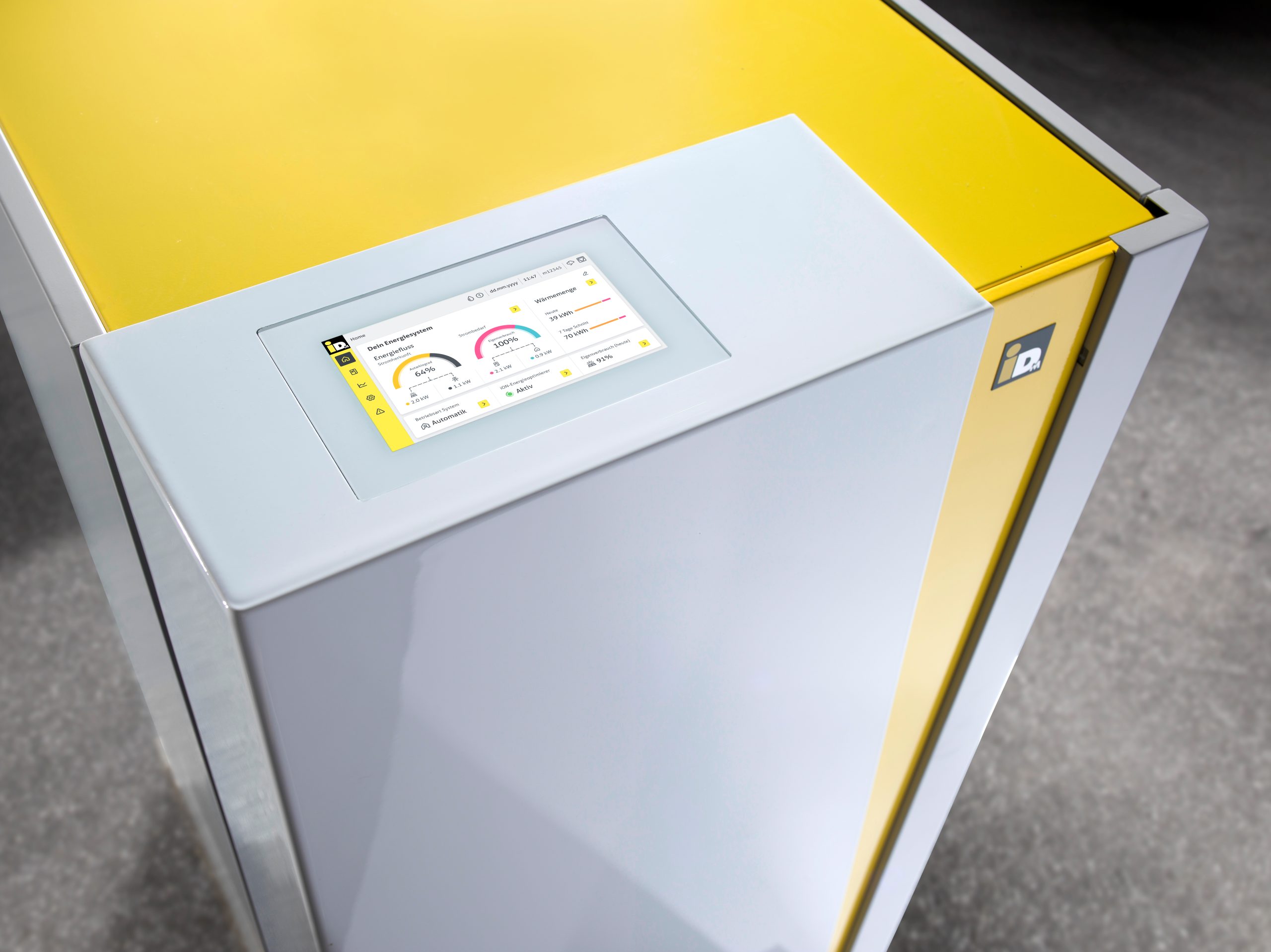

  • Intelligent NAVIGATOR Energy Manager – to efficiently control heating and cooling modes, as well as for domestic hot water preparation
  • Your yard remains untouched – thanks to space-saving indoor installation with only 0,45 m² installation area
  • Highly efficient operation through geothermal and hydrothermal energy
  • Optional passive cooling (without active compressor) for pleasent temperatures on hot summer days
  • Optionally with active cooling (TERRA SWM 6-17)
  • The controlled HGL technology (hot gas charging) ensures maximum domestic hot water comfort and durability – in the HGL equipment variant

Area of application

The use of high-quality components and through inverter cooling makes the TERRA SWM 3-13 a highly efficient heat pump that provides a SCOP at 35 °C of 5.51. It is ideal fpr single-family homes and reliably provides heating, cooling, and domestic hot water.

Technical data

Product name TERRA SWM 3-13 | HGL
Field of application Heat, Hot Water, Cool
Type of refrigerant synthetic
Max. flow temperature for heating 62 °C
Energy efficiency class SW (35°C, medium) A+++
Energy efficiency class WW (55°C, medium) A+++
PV integration possible yes

References

  • office building Simma Electronic, Austria

  • Residential complex Folders, Austria
